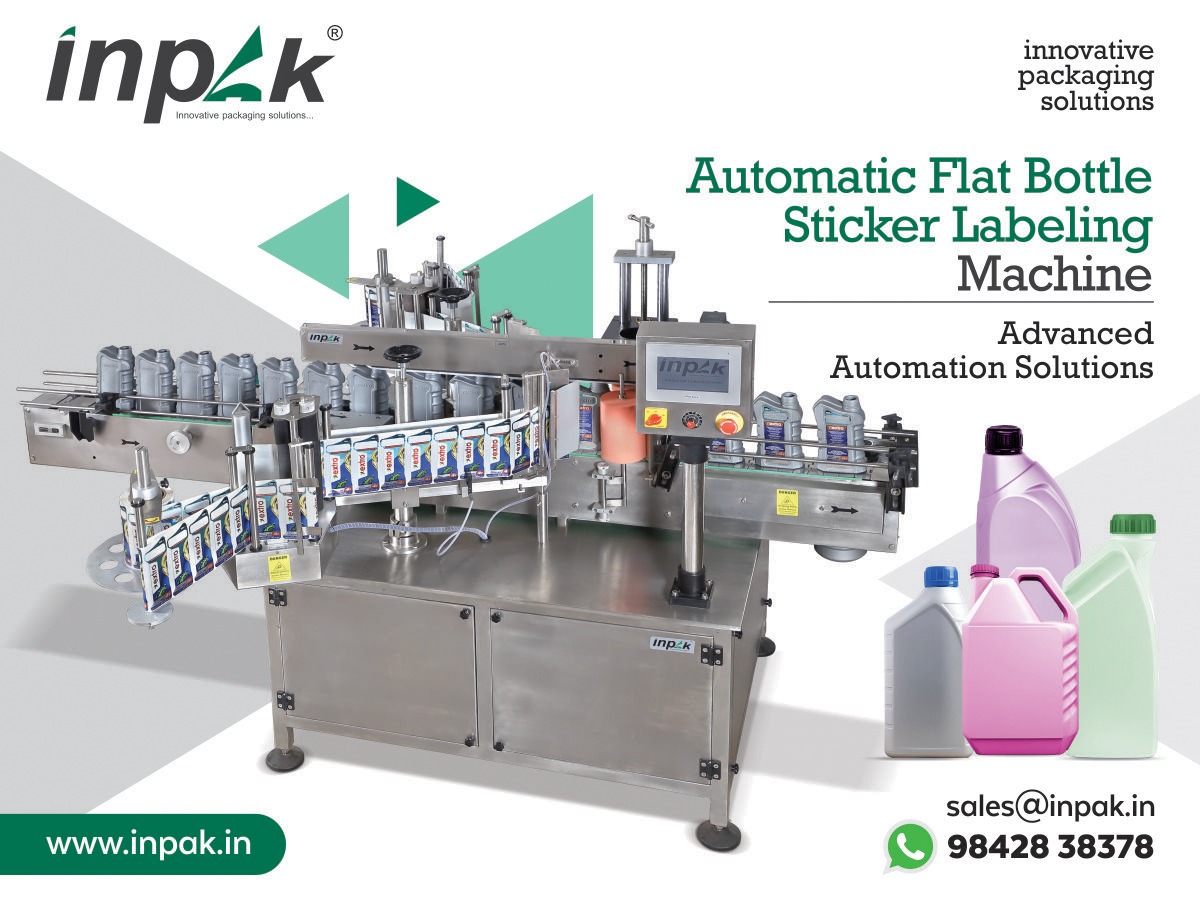

Automatic Flat Bottle Labelling Machine
Application
The Inpak SS Automation and packaging machines coimbatore Automatic Flat Bottle Labelling Machine is designed for automatic application of self-adhesive sticker labels on flat, oval, rectangular and suitably shaped bottles/containers.
It is suitable for:
Pharmaceutical bottles and containers
Cosmetic bottles
Personal care products
Lubricant and chemical bottles
Food and beverage containers
Household cleaning products
Flat and oval plastic/glass bottles
Front, back and wrap-around labelling applications
Main Features
Fully automatic PLC-controlled operation
Suitable for flat, oval and rectangular bottles
Automatic bottle feeding through conveyor
High-accuracy servo-driven labelling system
Adjustable labelling head for different bottle sizes
Label gap detection through photoelectric sensor
Product detection sensor for automatic label dispensing
Automatic label length and position adjustment
Speed synchronization between conveyor and labelling head
Suitable for single-side, front & back or wrap-around labelling
Recipe storage for different bottle/label sizes
User-friendly colour HMI control panel
No-bottle/no-label function
Label missing detection
Label break/end detection
Variable conveyor speed control
Tool-less or easy-adjustment changeover wherever applicable
SS304 machine frame and product-contact/handling areas where required
Compact and hygienic construction
Emergency stop and machine safety interlocks
Technical Specifications
Parameter Specification
Machine Type Automatic Flat Bottle Sticker Labelling Machine
Application Flat / Oval / Rectangular Bottles & Containers
Labelling Type Self-Adhesive Sticker Labelling
Labelling Position Front / Back / Single Side / Wrap-Around*
Production Speed Up to 60–120 bottles/min*
Labelling Accuracy ±1 mm*
Bottle Height Approx. 30–200 mm*
Bottle Width Approx. 20–150 mm*
Bottle Length Approx. 40–250 mm*
Label Height Approx. 10–150 mm*
Label Length Approx. 15–250 mm*
Label Roll OD Up to 300 mm*
Label Core ID 76 mm
Conveyor Height Approx. 750–850 mm, adjustable*
Conveyor Width As per bottle requirement
Conveyor Drive AC/Servo Motor
Labelling Head Drive Servo Motor
PLC Industrial PLC
HMI Colour Touchscreen HMI
Bottle Sensor Photoelectric Sensor
Label Sensor Label Gap / Photoelectric Sensor
Machine Frame SS304 / MS Powder-Coated*
Conveyor Belt PU/PVC/Equivalent
Power Supply 230/415 VAC, 50 Hz, 1 Phase/3 Phase*
Installed Power Approx. 1.0–2.0 kW*
Pneumatic Requirement 5–6 bar, if pneumatic accessories are provided
Machine Direction Left to Right / Right to Left
Control System PLC + HMI
Speed Adjustment Variable through HMI/VFD/Servo
Safety Emergency Stop + Safety Interlocks
Machine Construction Heavy-duty industrial construction
* Actual specifications depend on the bottle dimensions, label dimensions, required output and labelling configuration.
Recommended Optional Features
Front & back simultaneous labelling
Top labelling attachment
Bottom labelling attachment
Bottle orientation system
Star wheel / side belt bottle handling
Wrap-around labelling station
Online inkjet/laser printer
Batch coding and date printing
Barcode/QR-code inspection
Label presence inspection camera
Product rejection system
Automatic product spacing system
Servo-driven bottle separator
Accumulation conveyor
SS304 complete machine construction
